7-Segment Display (8-Pin)

Overview

Purpose: The 8-Pin 7-Segment Display is a raw display component that allows direct control over each individual segment (a-g) and the decimal point (dp). Unlike the 4-pin Digit Display which includes a built-in decoder, this component exposes all 8 pins for granular control.

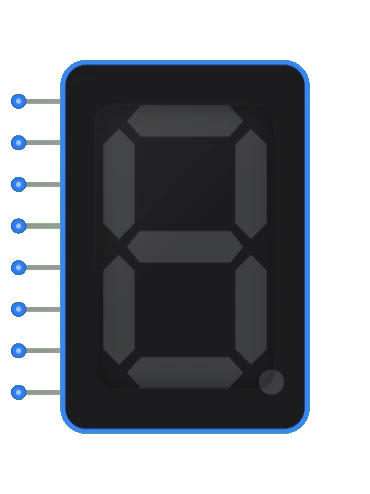

Symbol: Represented as a rectangular block with 8 input pins on the left side and a 7-segment display visual output.
DigiSim.io Role: Provides a lower-level interface for visualizing numeric and character data, ideal for teaching about display driving, decoding logic, and multiplexing.

seven segment display component

Functional Description

Logic Behavior

The 8-Pin 7-Segment Display does not contain any decoding logic. Each input pin directly controls one of the 8 segments (7 segments + decimal point). A high signal (1) turns the segment ON, and a low signal (0) turns it OFF.

Segment Mapping:

Pin Index	Segment	Position
0	a	Top
1	b	Top Right
2	c	Bottom Right
3	d	Bottom
4	e	Bottom Left
5	f	Top Left
6	g	Middle
7	dp	Decimal Point

Inputs and Outputs

Inputs:
- Pin 0 (a): Controls the top segment.
- Pin 1 (b): Controls the top-right segment.
- Pin 2 (c): Controls the bottom-right segment.
- Pin 3 (d): Controls the bottom segment.
- Pin 4 (e): Controls the bottom-left segment.
- Pin 5 (f): Controls the top-left segment.
- Pin 6 (g): Controls the middle segment.
- Pin 7 (dp): Controls the decimal point.
Outputs:
- Visual Display: The segments light up corresponding to the active inputs.

Configurable Parameters

Color: The active color of the segments (typically red, green, or blue).
Size: The display size can be adjusted relative to other components.

Visual Representation in DigiSim.io

The component is shown as a rectangular block with 8 input pins arranged vertically on the left side. The 7-segment display is centered on the right.

      a
    ┌───┐
  f │   │ b
    │ g │
    ├───┤
  e │   │ c
    │   │
    └───┘
      d    . dp

Educational Value

Key Concepts

Direct Segment Control: Understanding how individual segments form characters.
Decoding Logic: Building custom decoders (e.g., BCD to 7-segment) using logic gates.
Multiplexing: Learning how to drive multiple displays using shared data lines and control signals.
Lookup Tables: Implementing character maps in ROM or software.

Learning Objectives

Design a BCD to 7-segment decoder from scratch.
Understand the difference between common anode and common cathode configurations (simulated via logic levels).
Create custom character sets beyond standard 0-9 digits.

Usage Examples/Scenarios

Custom Decoder Design: Students build the logic to convert 4-bit binary to the 7-segment signals.
Alphanumeric Display: Displaying letters and custom symbols by driving specific segments.
Running Text: Creating scrolling text effects by rapidly changing segment patterns.
Status Indicators: Using individual segments to indicate different system states.

Technical Notes

This component simulates a Common Cathode display where active high inputs turn on the segments.
For Common Anode simulation, users would need to invert the input signals.
The decimal point (dp) is independently controllable and often used for floating-point numbers.

Related Components

Digit Display: A higher-level component with built-in BCD decoder.
Decoder: Generic decoders that can be used to drive this display.
ROM: Can be used to store segment patterns for character generation.

school Learning Path

arrow_back Prerequisites

Digit Display

Decoder (2-to-4)

arrow_forward Next Steps

Counter (8-bit)

help_outline Frequently Asked Questions

How do 7-segment displays work?

A 7-segment display has 7 LED segments (a-g) plus a decimal point. Each segment is controlled individually to form digits 0-9 and some letters.

What decoder do I need for 7-segment display?

Use a BCD to 7-segment decoder (like 7447 or 7448) to convert 4-bit binary to the 7 segment control signals, or drive segments directly for custom patterns.
