Control Unit

Overview

Purpose: The Control Unit is the orchestrating component of DigiSim's 8-bit computer architecture. It generates the control signals necessary to coordinate the Program Counter, Memory (RAM), Instruction Register, ALU, Flags Register, and other components to execute a complete instruction set.
Symbol: The Control Unit is represented by a rectangular block with multiple input and output pins for interfacing with the various CPU components.
DigiSim.io Role: The Control Unit enables the creation of a complete, functional 8-bit computer by properly sequencing and controlling all system components through a fetch-decode-execute-store cycle.

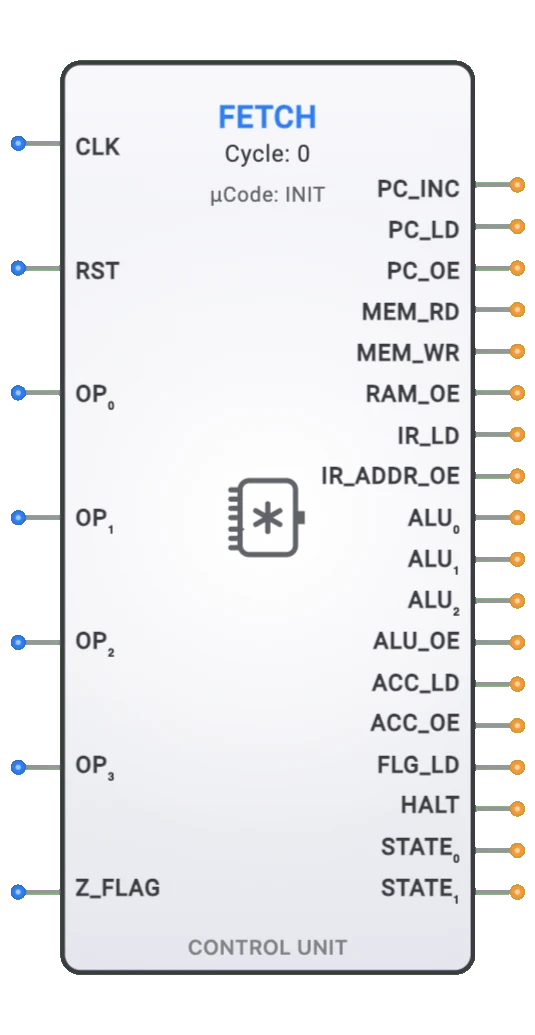

Control Unit component

Functional Description

State Machine Operation

The Control Unit operates as a 4-state finite state machine that cycles through:

FETCH: Retrieve the next instruction from memory
DECODE: Decode the instruction and increment the Program Counter
EXECUTE: Perform the operation specified by the instruction
STORE: Store results and update flags as needed

Inputs and Outputs

Inputs (7 pins):

Pin	Pin Name	Type	Description
0	CLK	Input	System clock for synchronous operation
1	RST	Input	Reset signal to initialize the control unit
2	OP0	Input	Opcode bit 0 from Instruction Register
3	OP1	Input	Opcode bit 1 from Instruction Register
4	OP2	Input	Opcode bit 2 from Instruction Register
5	OP3	Input	Opcode bit 3 from Instruction Register
6	Z_FLAG	Input	Zero flag from the Flags Register for conditional jumps

Outputs (18 pins):

Pin	Pin Name	Type	Description
0	PC_INC	Output	Increment Program Counter
1	PC_LD	Output	Load Program Counter (for jumps)
2	PC_OE	Output	Program Counter Output Enable (to Address Bus)
3	MEM_RD	Output	Memory Read Enable
4	MEM_WR	Output	Memory Write Enable
5	RAM_OE	Output	RAM Output Enable (to Data Bus)
6	IR_LD	Output	Instruction Register Load
7	IR_ADDR_OE	Output	IR Address Output Enable (to Address Bus)
8	ALU_OP0	Output	ALU operation code bit 0
9	ALU_OP1	Output	ALU operation code bit 1
10	ALU_OP2	Output	ALU operation code bit 2
11	ALU_OE	Output	ALU Output Enable (to Data Bus)
12	ACC_LD	Output	Accumulator Load
13	ACC_OE	Output	Accumulator Output Enable (to Data Bus)
14	FLG_LD	Output	Flags Register Load
15	HALT	Output	System Halt indicator
16	STATE0	Output	State bit 0 (LSB of 2-bit state encoding)
17	STATE1	Output	State bit 1 (MSB of 2-bit state encoding)

State Encoding (STATE1:STATE0):

00 → FETCH
01 → DECODE
10 → EXECUTE
11 → STORE

Instruction Set Architecture

The Control Unit supports a 16-instruction set with 4-bit opcodes:

Opcode	Hex	Mnemonic	Description	Operation
0000	0x0	NOP	No Operation	PC ← PC + 1
0001	0x1	LDA addr	Load Accumulator	ACC ← M[addr]
0010	0x2	STA addr	Store Accumulator	M[addr] ← ACC
0011	0x3	ADD addr	Add to Accumulator	ACC ← ACC + M[addr]
0100	0x4	SUB addr	Subtract from Accumulator	ACC ← ACC - M[addr]
0101	0x5	AND addr	Logical AND	ACC ← ACC & M[addr]
0110	0x6	OR addr	Logical OR	ACC ← ACC \| M[addr]
0111	0x7	XOR addr	Logical XOR	ACC ← ACC ^ M[addr]
1000	0x8	NOT	Logical NOT	ACC ← ~ACC
1001	0x9	SHL	Shift Left	ACC ← ACC << 1
1010	0xA	SHR	Shift Right	ACC ← ACC >> 1
1011	0xB	JMP addr	Unconditional Jump	PC ← addr
1100	0xC	JZ addr	Jump if Zero	if (Z=1) PC ← addr
1101	0xD	JNZ addr	Jump if Not Zero	if (Z=0) PC ← addr
1110	0xE	LDI	Load Immediate	Reserved for future
1111	0xF	HLT	Halt	Stop execution

Instruction Format

Bit Position	7	6	5	4	3	2	1	0
Field	OPCODE (4 bits)				OPERAND (4 bits)
Description	Operation to perform				Memory address/Value

Microcode Architecture

Control Signal Generation

The Control Unit uses a microcode ROM approach where each instruction is broken down into micro-operations across the four states. Each combination of opcode and state produces a specific set of control signals.

Example: LDA (Load Accumulator) Instruction

FETCH State:

PC_OE = 1 (PC drives address bus)
MEM_RD = 1 (Read instruction from memory)
IR_LD = 1 (Load instruction into IR)

DECODE State:

PC_INC = 1 (Increment PC to next instruction)

EXECUTE State:

IR_ADDR_OE = 1 (IR address drives address bus)
MEM_RD = 1 (Read data from memory address)

STORE State:

RAM_OE = 1 (RAM drives data bus)
ACC_LD = 1 (Load data into accumulator)
FLG_LD = 1 (Update flags)

Bus Control and Tri-State Management

The Control Unit carefully manages bus contention by ensuring only one component drives each bus at any time:

Address Bus: Controlled by PC_OE or IR_ADDR_OE
Data Bus: Controlled by RAM_OE, ALU_OE, or ACC_OE

Integration with Other Components

Component Compatibility

The Control Unit is designed to work seamlessly with DigiSim's existing components:

8-bit ALU: Receives operation codes (ALU_OP0-2) and provides results with flags
Program Counter: Controlled via PC_INC, PC_LD, and PC_OE signals
RAM (256×8): Managed via MEM_RD, MEM_WR, and RAM_OE signals

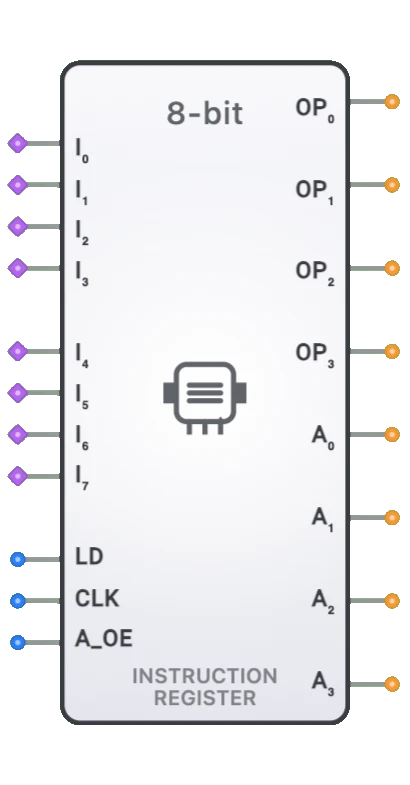

Instruction Register: Loaded via IR_LD and provides opcode/address splitting

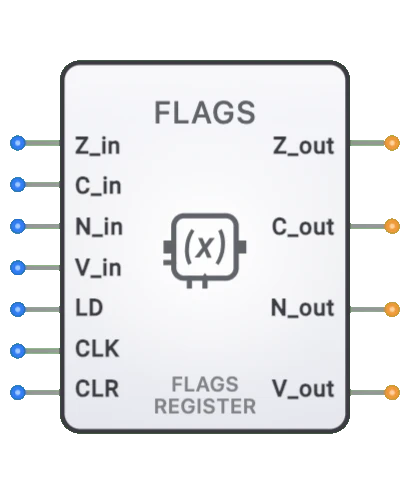

Flags Register: Updated via FLG_LD and read for conditional jumps (Z_FLAG)
Accumulator: Controlled via ACC_LD and ACC_OE signals

Signal Timing

The Control Unit ensures proper setup and hold times for all components:

Address Setup: Address signals are stable before memory operations
Data Valid: Data is valid when load signals are active
Clock Synchronization: All state changes occur on clock rising edges
Reset Behavior: Immediate asynchronous reset to known state

Usage Examples

Simple Program: Add Two Numbers

; Add two numbers stored in memory
0x0: LDA 0x8    ; Load first number from address 0x8
0x1: ADD 0x9    ; Add second number from address 0x9
0x2: STA 0xA    ; Store result at address 0xA
0x3: HLT        ; Halt execution
...
0x8: 0x05       ; First number (5)
0x9: 0x03       ; Second number (3)
0xA: 0x00       ; Result location

Loop Example: Count from 1 to 10

; Count from 0 to 10
0x0: LDA 0x8    ; Load counter
0x1: ADD 0x9    ; Add 1
0x2: STA 0x8    ; Store counter
0x3: SUB 0xA    ; Subtract 10
0x4: JNZ 0x0    ; Jump back if not zero
0x5: HLT        ; Halt when done
...
0x8: 0x00       ; Counter
0x9: 0x01       ; Constant 1
0xA: 0x0A       ; Constant 10

Technical Notes

Clock Requirements

Minimum Frequency: 1 Hz for educational observation
Maximum Frequency: Limited by component propagation delays
Duty Cycle: 50% recommended for optimal timing margins

Reset Behavior

Asynchronous Reset: Immediately sets state to FETCH
Signal Clearing: All control signals reset to inactive state
Halt Recovery: Requires reset to resume execution

Performance

All Instructions: 4 clock cycles (fetch-decode-execute-store)
Instructions Per Second: Clock frequency ÷ 4
Memory Bandwidth: One read or write per instruction cycle

school Learning Path

arrow_back Prerequisites

Decoder (3-to-8)

Instruction Register

Program Counter (8-bit)

arrow_forward Next Steps

RAM

ROM

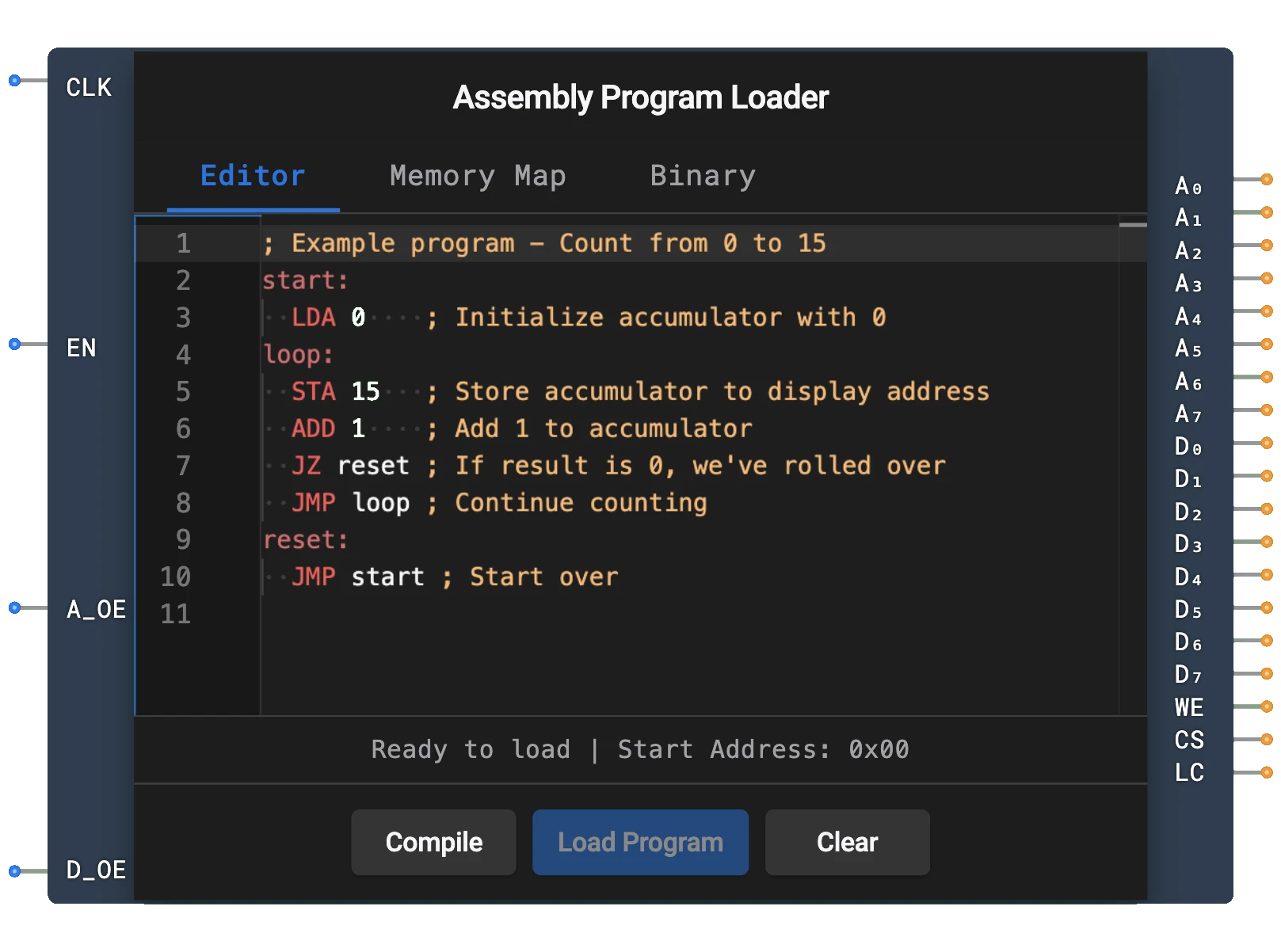

Assembly Program Loader

help_outline Frequently Asked Questions

What does the Control Unit do?

The CU decodes instructions and generates control signals that coordinate all CPU components - enabling registers, selecting ALU operations, controlling memory access.

What is microcode?

Microcode is low-level control code that implements each machine instruction as a sequence of micro-operations, controlling internal CPU signals.
