Full Adder

Overview

• Purpose: The Full Adder is a digital combinational circuit that performs addition of three binary digits: two input bits and one carry-in bit. It produces a sum bit and a carry-out bit, enabling multi-bit binary addition.

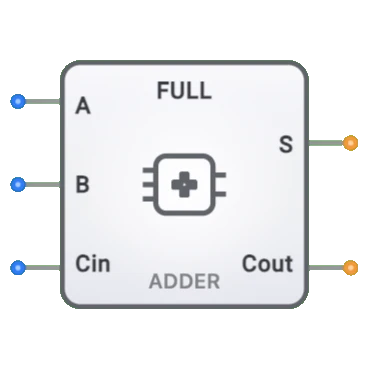

• Symbol: The Full Adder is represented by a rectangular block labeled "FA" with three inputs (A, B, and Carry-in) and two outputs (Sum and Carry-out).
• DigiSim.io Role: Serves as an essential building block for arithmetic operations in digital circuits, enabling addition operations of any bit width when combined in arrays.

Functional Description

Logic Behavior

The Full Adder adds three binary inputs (A, B, and Carry-in), generating two outputs: Sum (the result bit) and Carry-out (the overflow bit).

Truth Table:

Input A	Input B	Carry In	Sum	Carry Out
0	0	0	0	0
0	0	1	1	0
0	1	0	1	0
0	1	1	0	1
1	0	0	1	0
1	0	1	0	1
1	1	0	0	1
1	1	1	1	1

Boolean Expressions:

• Sum (S) = A ⊕ B ⊕ Cin (XOR of all three inputs)
• Carry Out (Cout) = (A · B) + (Cin · (A ⊕ B))

Inputs and Outputs

• Inputs:
  • Input A: 1-bit first binary input.
  • Input B: 1-bit second binary input.
  • Carry In (Cin): 1-bit carry input from a previous addition.
• Outputs:
  • Sum (S): 1-bit sum output representing the result of adding the three inputs.
  • Carry Out (Cout): 1-bit carry output representing the overflow when the sum exceeds 1.

Configurable Parameters

• Propagation Delay: The time it takes for the outputs to change after input changes. DigiSim.io simulates this delay in the event-driven simulator.

Visual Representation in DigiSim.io

The Full Adder is displayed as a rectangular block with inputs on the left side (A, B, and Cin) and outputs on the right side (Sum and Cout). It is clearly labeled to identify it as a Full Adder. When connected in a circuit, the component visually indicates the logic state of its pins through color changes on connecting wires.

Educational Value

Key Concepts

• Binary Arithmetic: Demonstrates the fundamental process of binary addition with carry.
• Combinational Logic: Shows how complex operations can be built from basic logic gates.
• Multi-Bit Operations: Illustrates how single-bit components can be combined for multi-bit operations.
• Carry Propagation: Introduces the concept of carry bits in arithmetic operations.

Learning Objectives

• Understand the principles of binary addition including carry generation and propagation.
• Learn how Full Adders extend Half Adders by incorporating carry input.
• Recognize how multiple Full Adders can be cascaded to create multi-bit adders.
• Apply Full Adders in designing arithmetic circuits like ALUs and calculators.
• Comprehend the relationship between Boolean expressions and arithmetic operations.

Usage Examples/Scenarios

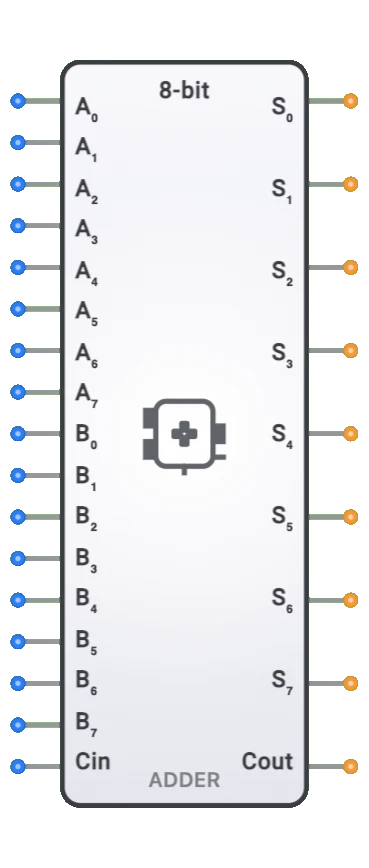

• Multi-Bit Addition: Cascading multiple Full Adders to add binary numbers of any width.
• Ripple Carry Adders: Creating n-bit adders by connecting Full Adders in series.
• Binary Subtraction: Using Full Adders with inverted inputs to perform subtraction via two's complement.
• ALU Implementation: Building the addition function in an Arithmetic Logic Unit.
• Counter Design: Using Full Adders in the implementation of binary counters.

Technical Notes

• The Full Adder can be constructed using two Half Adders and one OR gate.
• Carry propagation through cascaded Full Adders introduces delay that increases with bit width, which becomes a performance bottleneck in ripple carry adders.
• For multi-bit adders requiring higher performance, alternative architectures like carry-lookahead or carry-select adders are used to mitigate carry propagation delay.
• The Full Adder's critical path typically runs through the carry generation logic, making carry propagation the limiting factor for adder speed.

Characteristics

• Propagation Delay:
  • Sum: Typically 15-25ns (technology dependent)
  • Carry Out: Typically 10-20ns
• Power Consumption: Moderate
• Fan-Out: Typically 10-50 gates (technology dependent)
• Number of Gates: 5 basic gates in typical implementation (2 XOR, 2 AND, 1 OR)
• Circuit Complexity: Moderate
• Noise Margin: Moderate to high (depends on implementation technology)

Implementation Methods

1. Using Half Adders

   • Two half adders and one OR gate
   • First half adder adds A and B, second adds that sum and C_in
   • OR gate combines the carries from both half adders

2. Using Basic Logic Gates

   • Direct implementation with XOR, AND, and OR gates
   • Optimized implementations can reduce gate count

3. Transistor-Level Implementation

   • CMOS: Using complementary MOSFETs
   • TTL: Using bipolar junction transistors
   • Optimized for speed, power, or area

4. Integrated Circuits

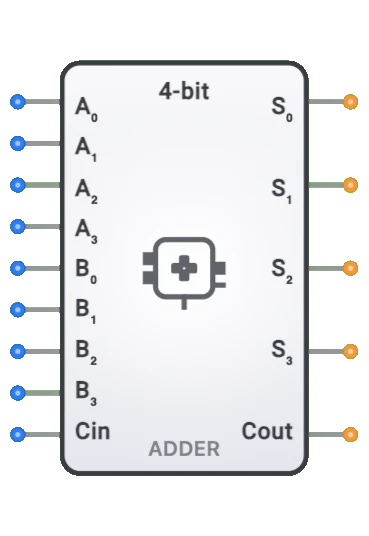

   • Available in 74xx series logic families (e.g., 74283 4-bit full adder)
   • Often part of larger arithmetic components

5. FPGA/CPLD Implementation

   • Can use dedicated adder logic or lookup tables (LUTs)
   • Often optimized by synthesis tools

Circuit Implementation

Using Half Adders

graph LR
    InputA[Input A] --> HA1[Half Adder 1]
    InputB[Input B] --> HA1

    HA1 -->|Sum1| HA2[Half Adder 2]
    CinPin[Carry In] --> HA2

    HA1 -->|Carry1| OrGate[OR Gate]
    HA2 -->|Carry2| OrGate

    HA2 -->|Sum| SumOut[Sum Output]
    OrGate --> CoutPin[Carry Out]

Using Basic Gates

graph TB
    InputA[Input A] --> XorGate1[XOR Gate]
    InputB[Input B] --> XorGate1
    XorGate1 --> XorGate2[XOR Gate]
    CinPin[Carry In] --> XorGate2
    XorGate2 --> SumOut[Sum]

    InputA --> AndGate1[AND Gate]
    InputB --> AndGate1

    XorGate1 --> AndGate2[AND Gate]
    CinPin --> AndGate2

    AndGate1 --> OrGate[OR Gate]
    AndGate2 --> OrGate
    OrGate --> CoutPin[Carry Out]

Applications

1. Multi-Bit Binary Addition

   • Cascaded to form ripple carry adders
   • Used in arithmetic logic units (ALUs)
   • Essential for integer arithmetic in CPUs

2. Subtraction Circuits

   • Used with inverted inputs and carry-in set to 1
   • Forms the basis for two's complement subtraction

3. Arithmetic Logic Units (ALUs)

   • Core component in CPU arithmetic operations
   • Used for addition, subtraction, and related operations

4. Address Calculation

   • Used in memory address computation
   • Employed in program counter incrementing

5. Counters and Incrementers

   • Used in digital counters
   • Employed in state machines

6. Digital Signal Processing

   • Used in multiply-accumulate operations
   • Component in digital filters

7. Error Detection/Correction

   • Used in parity and checksum calculations
   • Component in CRC and ECC circuits

Limitations

1. Carry Propagation Delay

   • In cascaded (ripple carry) implementations, carries must propagate through each stage
   • Can limit the performance of multi-bit adders
   • Faster architectures like carry-lookahead adders address this limitation

2. Power Consumption

   • Higher than half adders due to increased gate count
   • Can be significant in high-speed or large bit-width adders
