8-Bit Tri-State Buffer

8-Bit Tri-State Buffer

Logic Gates signal_cellular_alt_2_bar Intermediate schedule 20 min

8-bit Tri-State Buffer

Overview

  • Purpose: The 8-bit Tri-State Buffer is a digital circuit that controls the flow of 8-bit data between components, capable of either passing its input signals to the output or disconnecting its outputs entirely (high-impedance state).

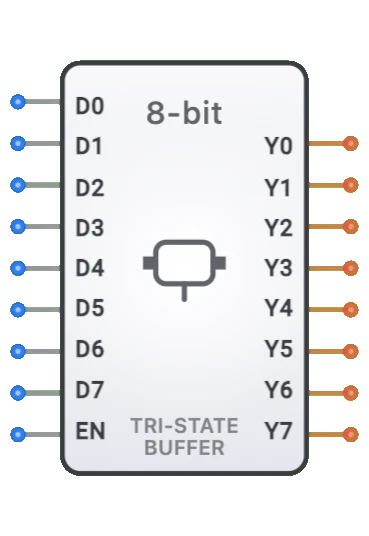

  • Symbol: Typically represented as a rectangular block with eight data inputs (A[7:0]), an enable input (EN), and eight data outputs (Y[7:0]).
  • DigiSim.io Role: Serves as an essential component in bus-oriented systems where multiple devices need to share common data lines, enabling controlled access to shared resources while preventing signal conflicts.

tri state uuffer 8uit component

Functional Description

Logic Behavior

The 8-bit Tri-State Buffer operates as a group of eight individual buffers with a common enable control. When enabled, all eight bits of input data are passed directly to the corresponding output pins. When disabled, all outputs enter a high-impedance state, effectively disconnecting from the circuit and allowing other devices to drive the same signal lines.

Truth Table:

EN A[7:0] Y[7:0]
0 Any value Hi-Z
1 A[7:0] A[7:0]

Note: Hi-Z represents the high-impedance state where the output is electrically disconnected from the circuit.

Inputs and Outputs

  • Inputs:

    • A[7:0]: Eight data input signals that will be passed to the outputs when enabled.
    • EN: Enable input that controls whether the buffer is active or in high-impedance state.

  • Outputs:

    • Y[7:0]: Eight data output signals that either mirror the input signals (when enabled) or are in high-impedance state (when disabled).

Configurable Parameters

  • Enable Logic: Whether the buffer is active-high (enabled when EN=1) or active-low (enabled when EN=0).
  • Output Drive Strength: The current sourcing/sinking capability of the outputs when enabled.
  • Slew Rate Control: The transition speed between logic states.
  • Output Type: Standard tri-state outputs or open-collector/open-drain variants.
  • Propagation Delay: The time it takes for the outputs to reflect changes on the inputs or enable signal.

Visual Representation in DigiSim.io

The 8-bit Tri-State Buffer is displayed as a rectangular block with eight data input pins (A[7:0]) on the left side, an enable control pin (EN) at the bottom, and eight data output pins (Y[7:0]) on the right side. When connected in a circuit, the component visually indicates its state through color changes on connecting wires, with a distinct representation when outputs are in high-impedance mode.

Educational Value

Key Concepts

  • Bus Architecture: Demonstrates how digital systems share common signal paths among multiple devices.
  • Three-State Logic: Introduces the concept of high-impedance as a third state beyond the binary logic values.
  • Resource Sharing: Illustrates how multiple components can take turns controlling shared resources.
  • Signal Isolation: Shows how parts of a circuit can be electrically isolated when not in use.
  • Data Flow Control: Presents mechanisms for managing when data appears on common signal lines.
  • Digital Switching: Emphasizes the importance of controlled signal routing in complex systems.

Learning Objectives

  • Understand the functionality and purpose of high-impedance state in digital bus systems.
  • Learn how shared buses operate in computer and microprocessor architectures.
  • Recognize the importance of proper enable signal timing to prevent bus contention.
  • Apply tri-state concepts in designing bus-based digital systems.
  • Comprehend the relationship between tri-state buffers and data routing.
  • Develop skills in analyzing and designing systems with multiple data sources connected to common lines.
  • Master timing considerations when multiple devices share communication pathways.

Usage Examples/Scenarios

  • Data Bus Implementation: Connecting multiple devices to a common data bus while ensuring only one drives the bus at a time.
  • Memory Interfacing: Enabling multiple memory chips to share address and data lines in computer systems.
  • Peripheral Connections: Allowing multiple peripheral devices to communicate via a shared bus structure.
  • I/O Port Management: Creating bidirectional ports in microcontroller systems.
  • Bus Arbitration: Controlling access to shared resources in multi-device systems.
  • Data Multiplexing: Selectively routing 8-bit data from different sources to a common destination.
  • Test Access: Enabling test equipment to monitor signals without affecting circuit operation.
  • Multi-processor Systems: Managing shared memory access between multiple processors.

Technical Notes

  • Unlike single-bit tri-state buffers, 8-bit versions switch all outputs simultaneously, making them ideal for byte-wide operations.
  • Critical timing parameters include enable-to-output delay (5-15ns) and disable-to-high-impedance time (5-20ns).
  • When multiple tri-state buffers share common outputs, careful timing is essential to prevent bus contention (multiple drivers active simultaneously).
  • In high-speed applications, signal integrity issues like ground bounce can occur when multiple outputs change state simultaneously.
  • Common IC implementations include the 74HC244/245 series buffers and transceivers.
  • Some implementations include additional features like output latches, direction control, or level shifting capabilities.
  • In DigiSim.io, the 8-bit tri-state buffer accurately models the behavior of real buffer ICs, including proper handling of the high-impedance state for all eight bits.

Characteristics

  • Input Configuration:

    • 8-bit data input (A[7:0])
    • One enable signal (EN)
    • Active-high enable (1 = enabled, 0 = outputs in Hi-Z state)
    • Compatible with standard digital logic levels
    • Typically features high input impedance

  • Output Configuration:

    • 8-bit data output (Y[7:0])
    • Three possible states per output pin:
      • Logical HIGH (when enabled and input is HIGH)
      • Logical LOW (when enabled and input is LOW)
      • High-impedance (when disabled)
    • Capable of driving standard digital loads when enabled
    • Output impedance varies between low (enabled) and very high (disabled)

  • Functionality:

    • Controls data flow between components
    • Isolates signals from bus lines when disabled
    • Allows multiple devices to share a common bus
    • Non-inverting (output matches input when enabled)
    • Fast transition between enabled and Hi-Z states

  • Propagation Delay:

    • Typical enable to output: 5-15ns
    • Typical disable to Hi-Z: 5-20ns
    • Data input to output: 3-12ns
    • Technology and temperature dependent
    • Delay increases with capacitive loading

  • Fan-Out:

    • Typically drives 10-20 standard loads when enabled
    • Output loading affects propagation delay
    • Effectively zero when in Hi-Z state

  • Power Consumption:

    • Low to moderate static power (technology dependent)
    • Dynamic power increases with switching frequency
    • Power consumption negligible when disabled
    • Modern CMOS implementations very power efficient
    • Current spikes during state transitions

  • Circuit Complexity:

    • Moderate (8 tri-state buffer elements plus control logic)
    • Simple control requirements (single enable line)
    • May include additional features in some implementations
    • Can be cascaded for wider data paths

Implementation Methods

  1. Discrete Logic

    • Built from individual logic gates and transistors
    • Requires additional circuitry for tri-state functionality
    • Each bit requires separate buffer with enable control
    • Custom implementations for specific requirements
    • Rarely used in modern designs except for special cases

  2. Integrated Circuit Implementation

    • Dedicated 8-bit tri-state buffer ICs
    • Common in 74xx series logic families
    • Examples: 74HC244, 74HCT541, 74ABT541
    • Octal buffers with tri-state outputs
    • Often include features like inverted enables or outputs
    • Various drive capabilities available (standard, high-current)

  3. BiCMOS and Advanced CMOS Implementations

    • Optimized for speed and drive capability
    • Lower power consumption than older technologies
    • Better noise immunity and output drive
    • Reduced switching noise and ground bounce
    • Examples: 74ABT series, 74LVT series

  4. Bus Interface Components

    • Specialized bus transceivers with enhanced tri-state capabilities
    • Direction control in addition to enable functionality
    • Bus-hold features to prevent floating inputs
    • Current-limiting protection
    • Examples: 74ABT16245, 74LVT16245

  5. FPGA/ASIC Implementation

    • Implemented using I/O cells in programmable logic
    • Configurable drive strength and slew rate
    • Programmable pull-up/pull-down resistors
    • Often includes hot-swap capability in modern designs
    • Can be optimized for specific applications

  6. System-on-Chip (SoC) Integration

    • Embedded within larger integrated systems
    • Customized for specific bus protocols
    • Optimized for performance and power
    • Often includes additional protection circuitry
    • May support multiple voltage domains

Applications

  1. Bus Systems

    • Data bus control in microprocessor systems
    • Address bus management
    • Peripheral connection to shared buses
    • Multi-drop serial/parallel interfaces
    • Memory interface circuits

  2. Data Multiplexing

    • Selection between multiple data sources
    • Routing data to different destinations
    • Time-division multiplexing implementations
    • Channel selection in data acquisition systems
    • Sensor data routing in instrumentation

  3. I/O Port Management

    • Bidirectional port implementation
    • Peripheral chip select and control
    • Level translation between voltage domains
    • Interface isolation in modular systems
    • Input/output pin direction control

  4. Memory Systems

    • RAM data line control
    • ROM chip selection
    • Memory bank switching
    • Cache interface management
    • DMA data path control

  5. Communication Interfaces

    • Parallel communication protocols
    • Bus contention prevention
    • Line driver/receiver in network interfaces
    • Backplane interfaces in modular systems
    • Serial data switching

  6. Signal Routing and Switching

    • Analog/digital signal routing
    • Test circuit isolation
    • Fault isolation in critical systems
    • Power domain isolation
    • Bus arbitration systems

  7. Display Systems

    • LED/LCD display data control
    • Display multiplexing
    • Video signal routing
    • Graphics processing data paths
    • Display buffer control

Limitations

  1. Switching Noise

    • Generates noise when multiple outputs switch simultaneously
    • Ground bounce in high-speed applications
    • May require careful PCB layout and decoupling
    • Can cause data corruption in sensitive applications
    • Worse when driving heavy capacitive loads

  2. Bus Contention

    • Damage possible if multiple enabled buffers drive same bus lines
    • Requires careful timing to prevent overlap
    • System design must ensure mutual exclusion of drivers
    • Race conditions possible in complex systems
    • May need additional arbitration logic

  3. Floating Inputs

    • Disconnected inputs can cause unpredictable behavior
    • May require pull-up/pull-down resistors
    • Noise sensitivity increases with bus length
    • Susceptible to electromagnetic interference
    • Bus-hold features needed in some applications

  4. Propagation Delay Variations

    • Enable/disable timing skew between bits
    • Temperature and voltage sensitivity
    • Manufacturing variations between units
    • Loading affects timing characteristics
    • Critical in high-speed synchronous systems

  5. Power Consumption Spikes

    • Current surges during switching
    • Higher power draw when driving capacitive loads
    • EMI generation during state transitions
    • Power supply decoupling critical
    • Thermal considerations in high-duty applications

Circuit Implementation Detail

Basic Tri-State Buffer Element (Single Bit)

graph TB
    InputA[Input A] --> BufferOp[Buffer]
    EnablePin[Enable EN] --> InverterOp[Inverter]

    BufferOp --> AndGate[AND Gate]
    EnablePin --> AndGate

    AndGate --> OrGate[OR Gate]
    InverterOp --> OrGate

    OrGate --> OutputY[Output Y]

Operation:

  • EN = 1: Output Y = Input A (buffer enabled)
  • EN = 0: Output Y = High-Z (buffer disabled, output disconnected)
  • Tri-State Control: Enable signal gates the data path

74HC244 Octal Buffer (Internal Structure)

Pin Configuration:

Pin Group Input Output Enable
Group 1 A0-A3 Y0-Y3 /G1 (active-low)
Group 2 A4-A7 Y4-Y7 /G2 (active-low)

Features:

  • Octal Configuration: Eight independent tri-state buffers
  • Dual Enable: G1 controls bits 0-3, G2 controls bits 4-7
  • Active-Low Enable: Output enabled when /G = 0
  • High Drive: Can drive up to 15 LSTTL loads
  • Output Current: ±6mA typical

Typical Bus Application

graph TB
    D1[Device 1 Data] --> TSB1[Tri-State Buffer 1]
    E1[Enable 1] --> TSB1
    TSB1 --> BUS[Shared 8-bit Bus]

    D2[Device 2 Data] --> TSB2[Tri-State Buffer 2]
    E2[Enable 2] --> TSB2
    TSB2 --> BUS

    BUS --> D3[Device 3]
    BUS --> D4[Device 4]

Bus Arbitration:

  • Only ONE device can drive the bus at a time (Enable = 1)
  • Other devices must be disabled (Enable = 0, High-Z state)
  • Prevents bus contention and short circuits
  • Multiple devices can read (listen) simultaneously

Related Components

  • Single-Bit Tri-State Buffer: Controls a single data line
  • Tri-State Inverter: Inverts the input signal with tri-state capability
  • Bidirectional Tri-State Buffer: Allows data flow in either direction
  • Bus Transceiver: Combines drivers and receivers with direction control
  • Open-Collector/Open-Drain Buffer: Alternative method for bus connections
  • Standard Buffer: Always drives output (no high-impedance state)
  • Level Shifter: Tri-state buffer with voltage level translation
  • Bus Switch: Low-impedance analog switch for bus connections
  • Multiplexer: Selects one of several inputs to connect to an output
  • Demultiplexer: Routes a single input to one of several possible outputs

school Learning Path

arrow_back Prerequisites

Tri-State Buffer Register (8-bit)

arrow_forward Next Steps

8-Bit Data Bus RAM

help_outline Frequently Asked Questions

How do 8-bit tri-state buffers work?

Eight individual tri-state buffers controlled by a single enable signal. When enabled, all 8 bits pass through; when disabled, all outputs go to high-impedance.

How do I prevent bus contention?

Never enable two tri-state buffers driving the same bus simultaneously. Use control logic to ensure only one device drives the bus at any time.

play_arrow Run Live Circuit

See Other Components

AND Gate
AND Gate Logic Gates
OR Gate
OR Gate Logic Gates
NOT Gate
NOT Gate Logic Gates
Input Switch
Input Switch Input/Output
Clock
Clock Input/Output
Constant
Constant Input/Output
list All Components
